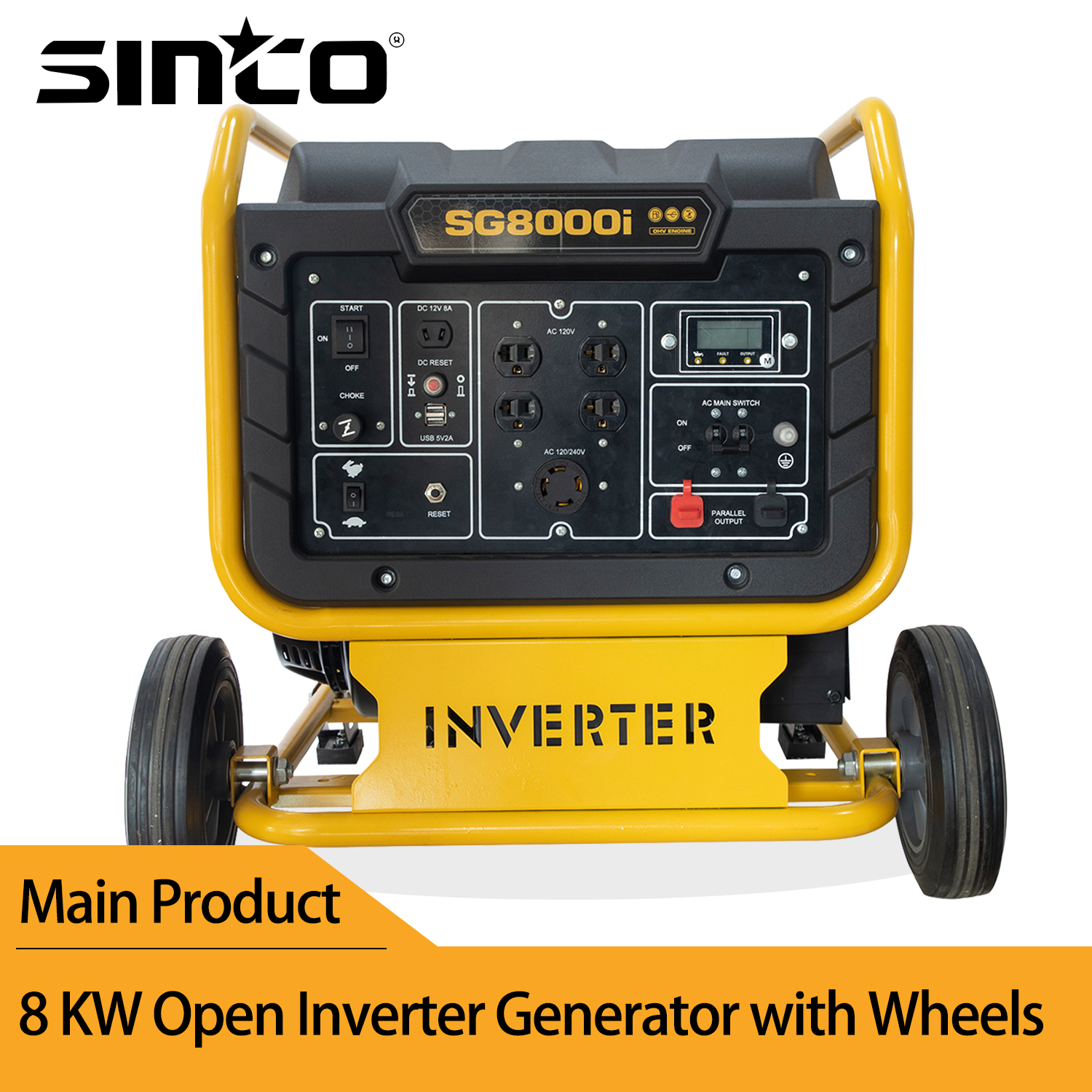

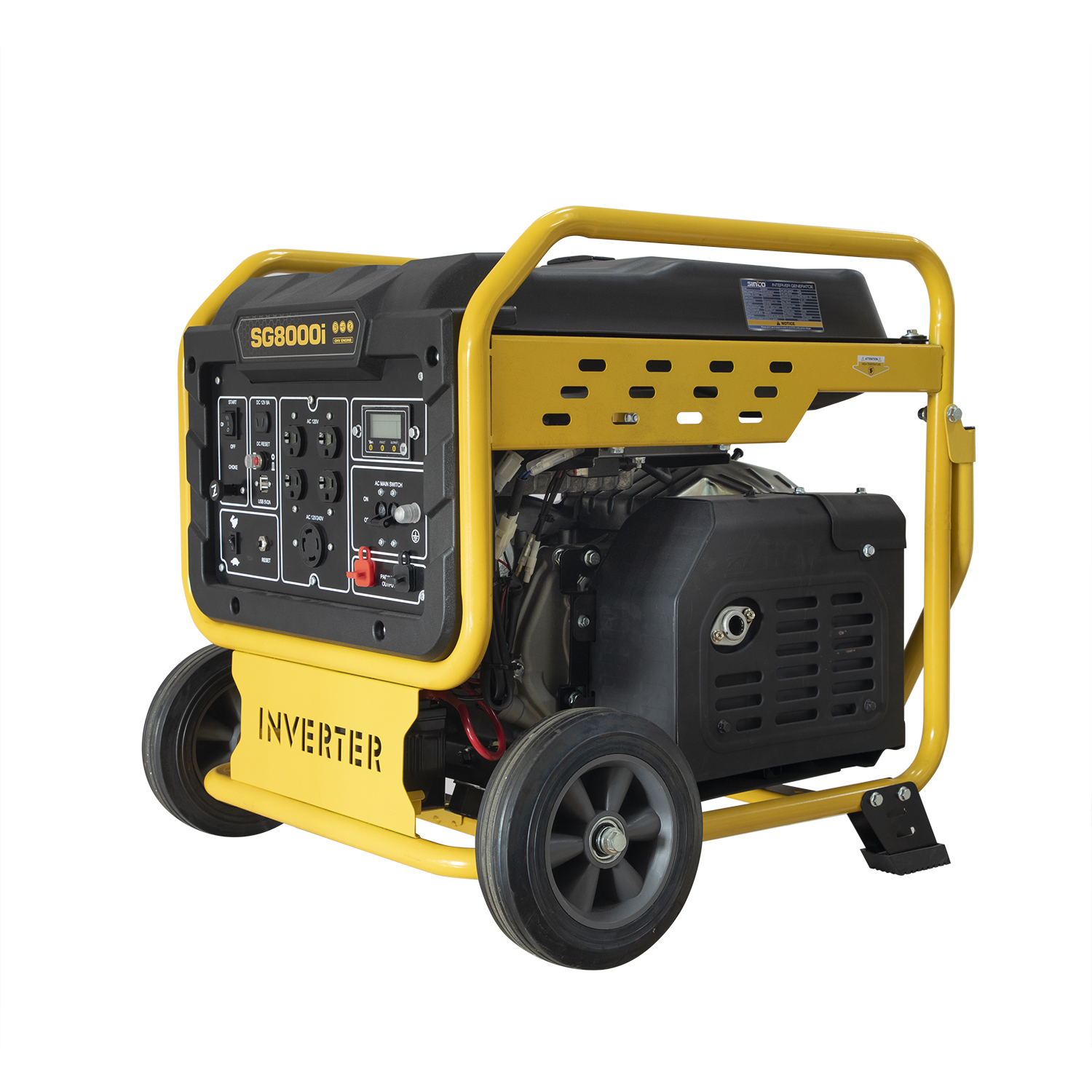

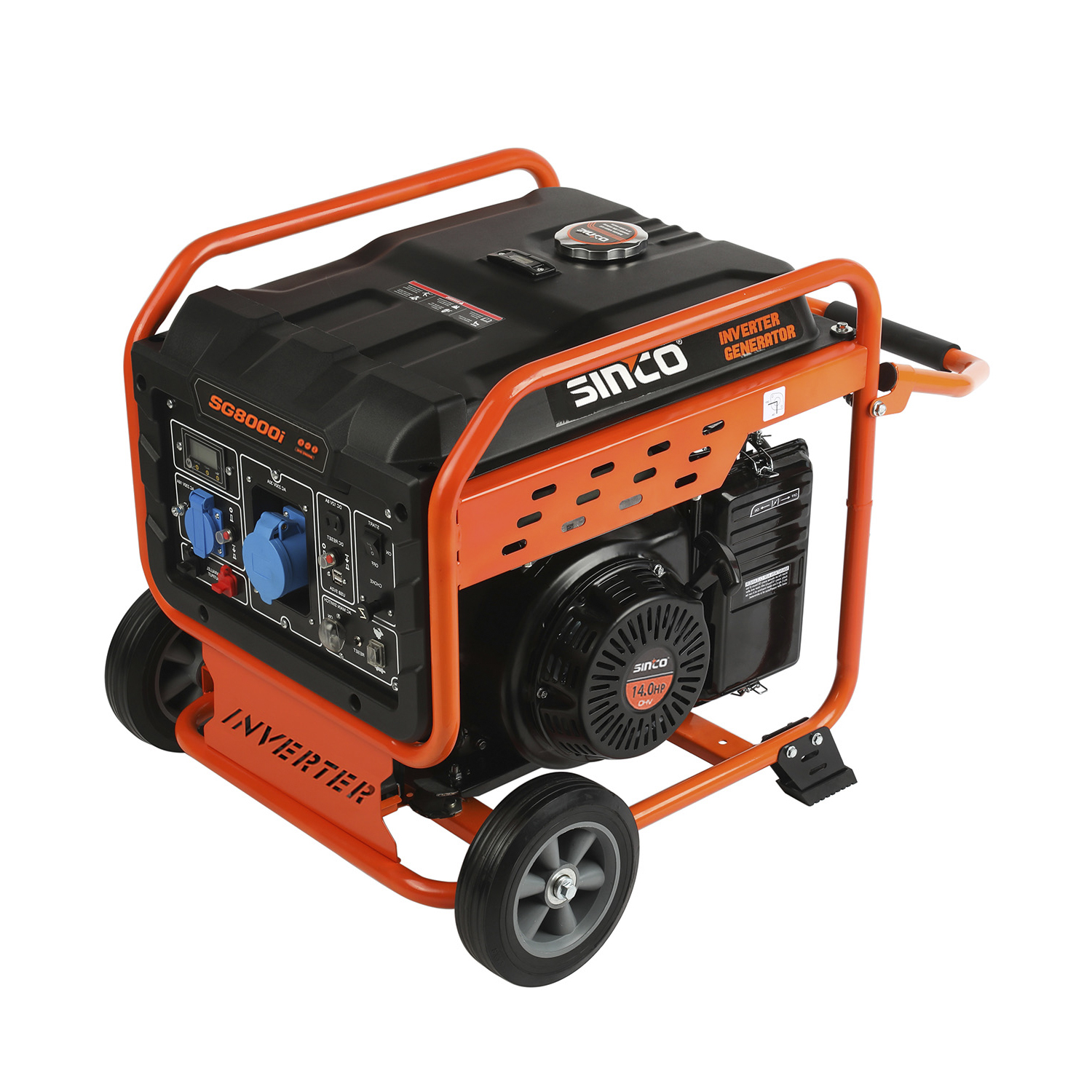

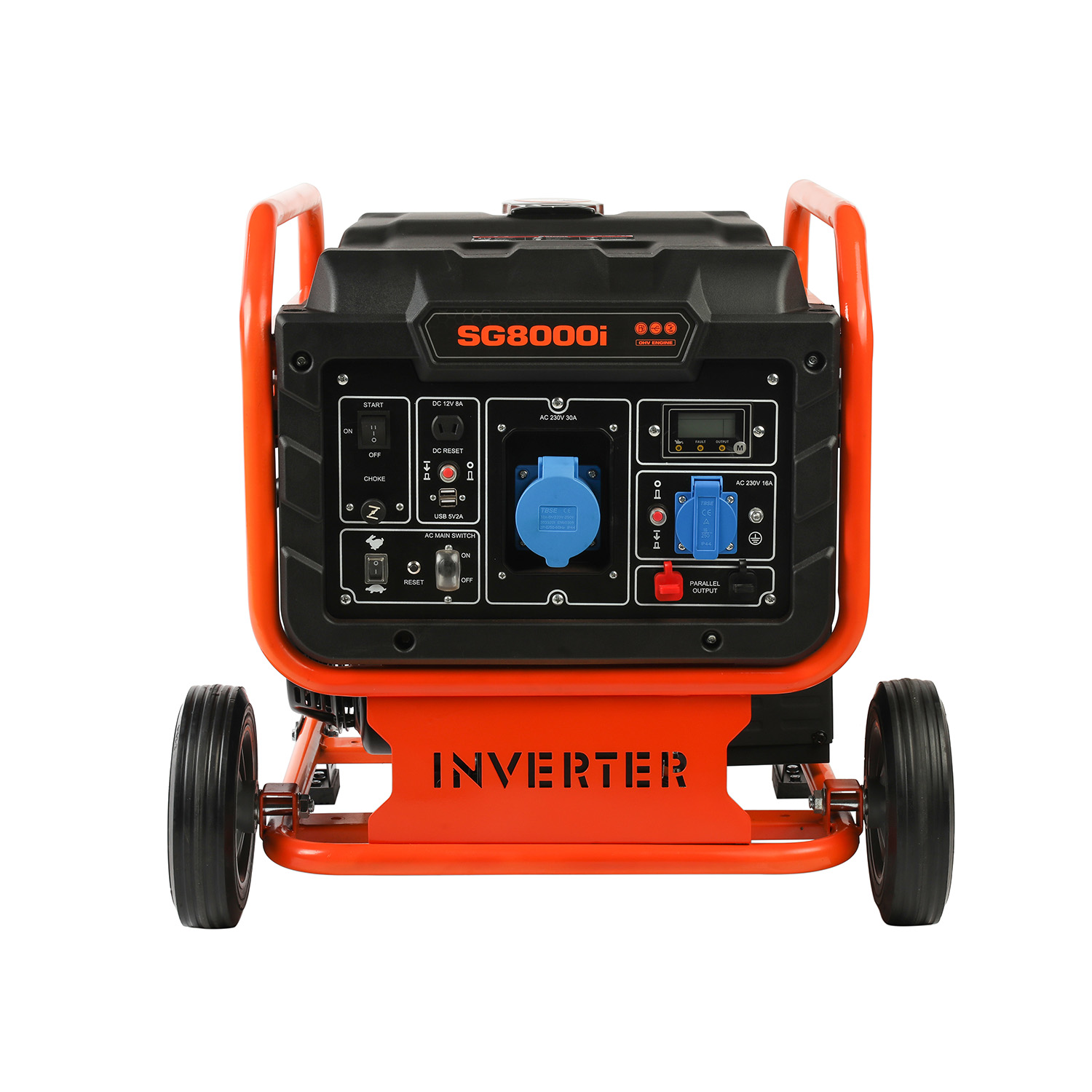

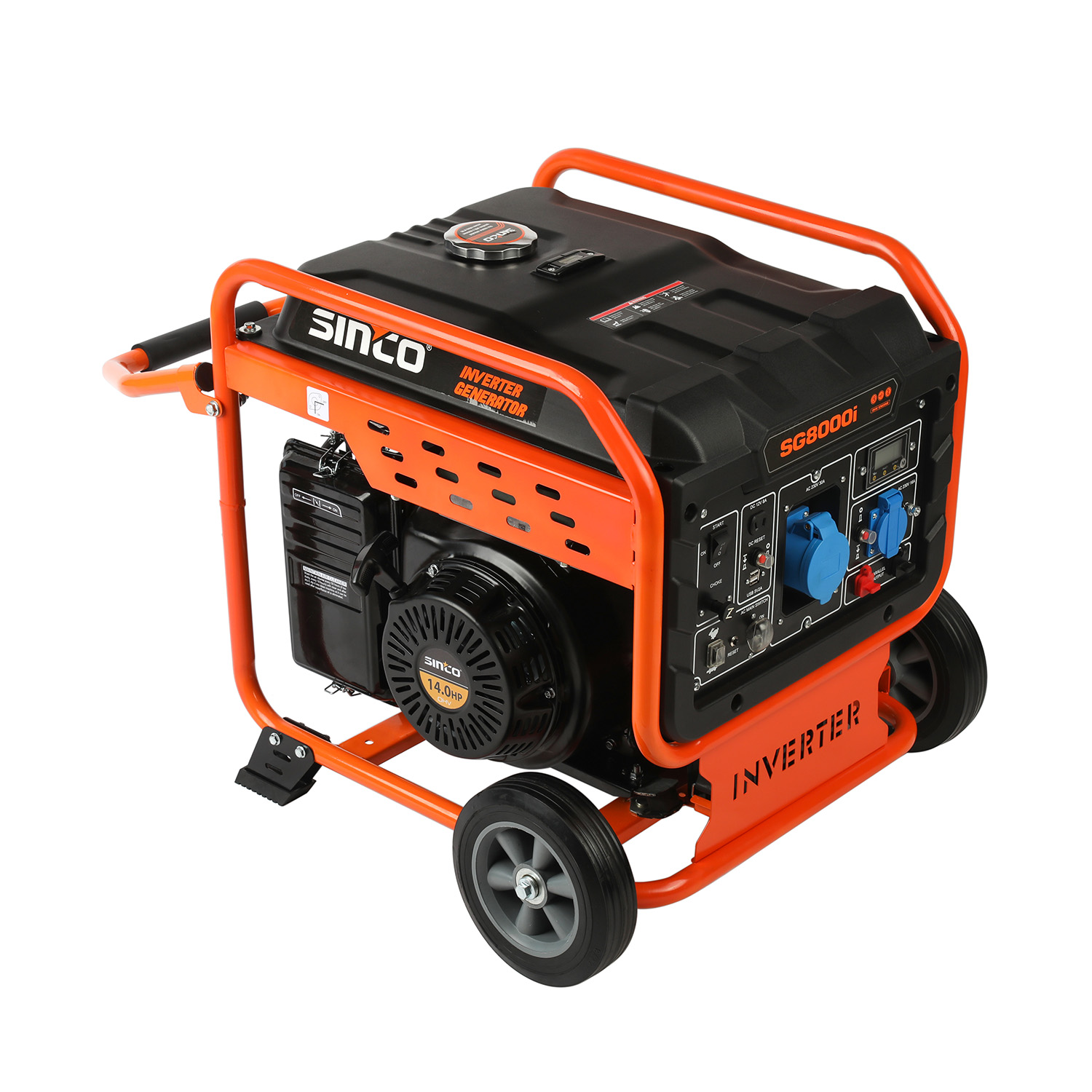

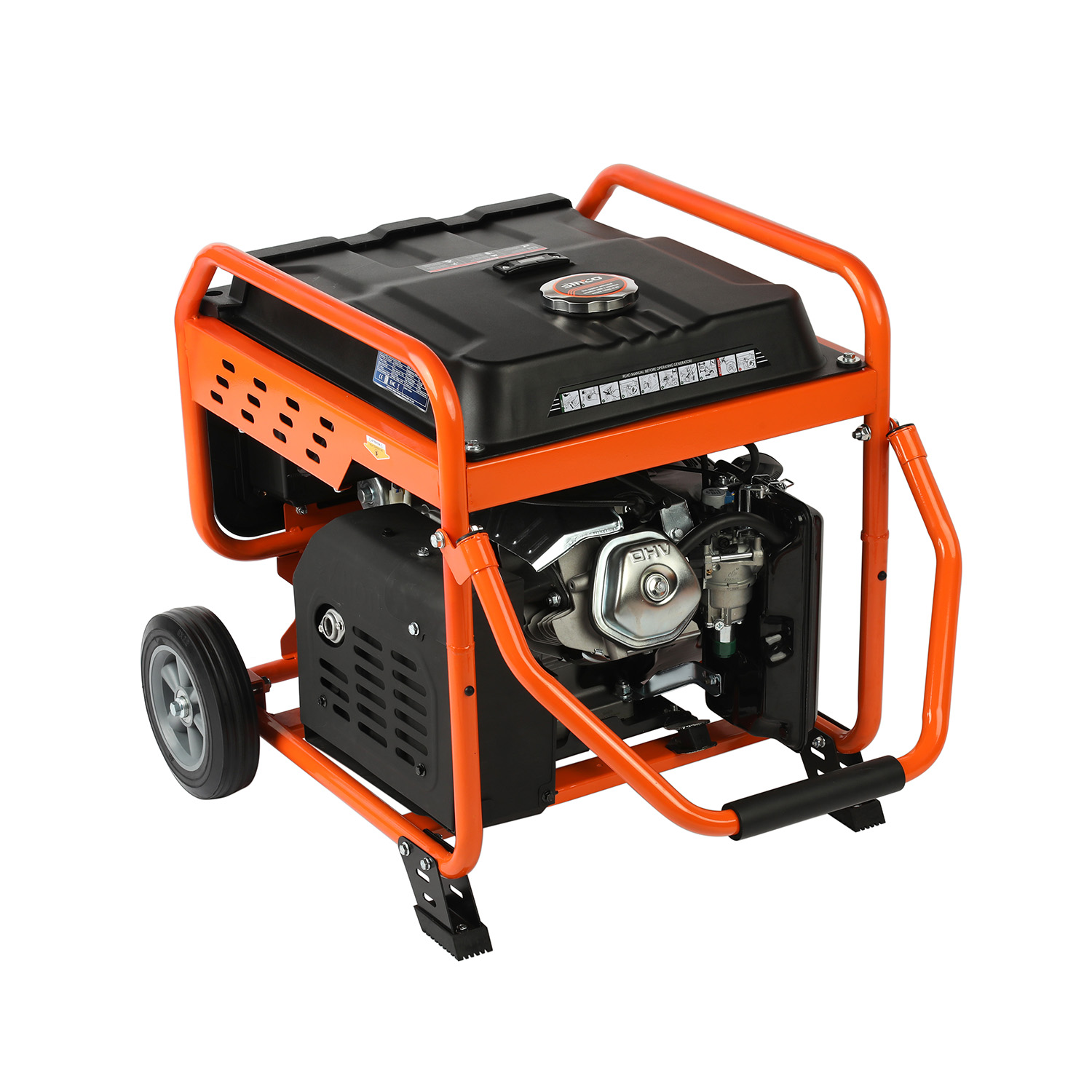

Sinco Brand 8kw Large Capacity Oil Tank Open Inverter Generator with Wheels with EPA/Carb/CE/Noise/GS

Brand                                                  Sinco
Max Power                                         7.5kw
Rated Power                                      7.0kw
Voltage                                               230V/240V/115V/120V/
Frequency                                          50/60Hz
Starting System                                 Electric Start
Displacement(Cc)                              420
Fuel Tank                                            20L
Continuous Work                              8h
Engine Type                                       Ohv 4 Stroke, Air-Cooled, Single Cylinder
Lubrication Oil                                   SAE 5W/30
Noise Level(Dba)                                75dB(a)
Weight                                                 60/62kg
Certificate                                            RoHS/CE/Noise/EU-V/EPA/Carb/EMC/SGS/ISO
40FT Container                                   288
Transport Package                             Brown Carton Packing
Specification                                        680*530*560
Origin                                                   China
HS Code                                               85022000
Production Capacity                          5000000/Month
Availability:
Quantity:
  • 8000i

  • Sinco

模板_02

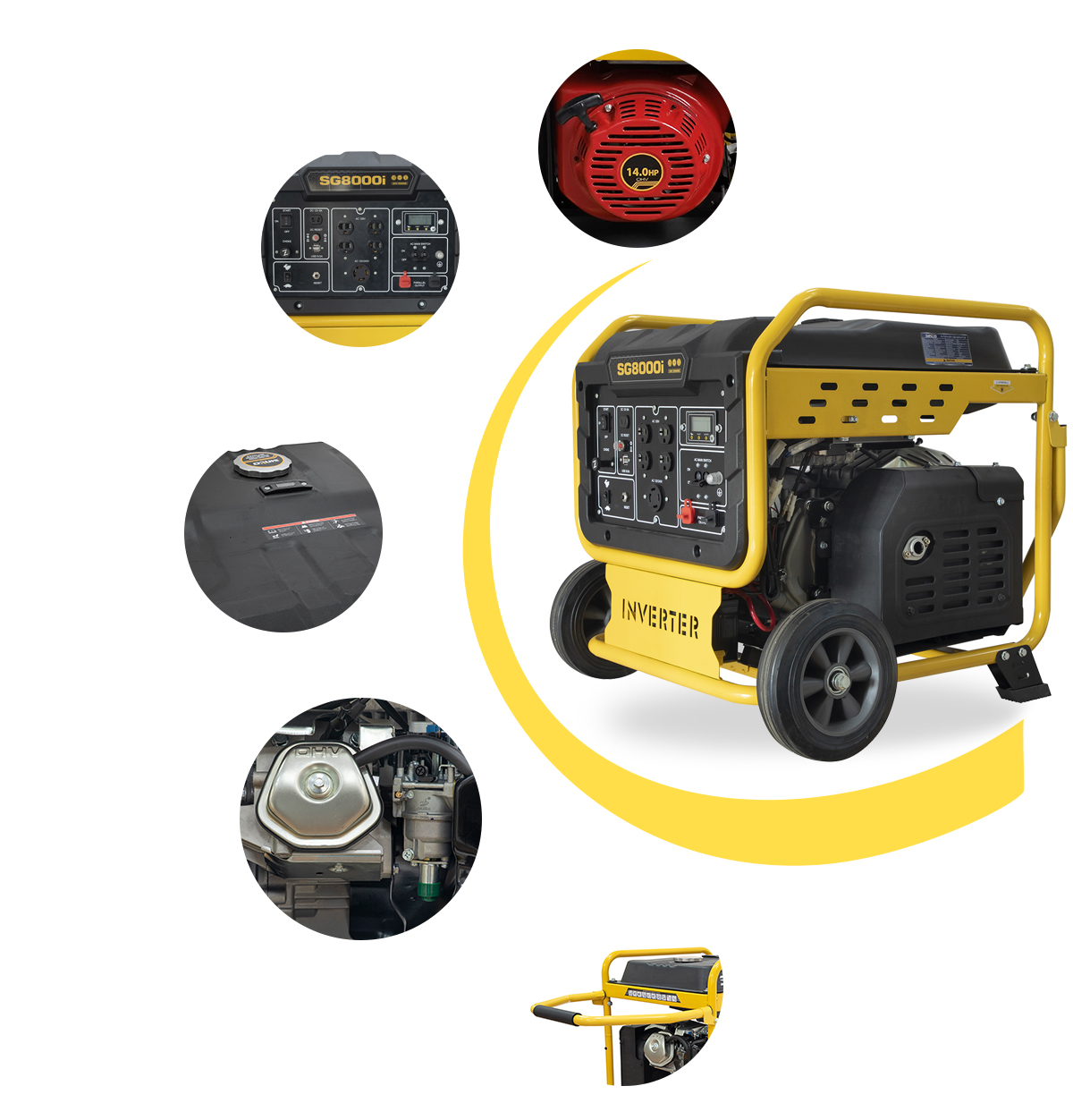

产品图

Features for Home use 8.0KW open gasoline generators

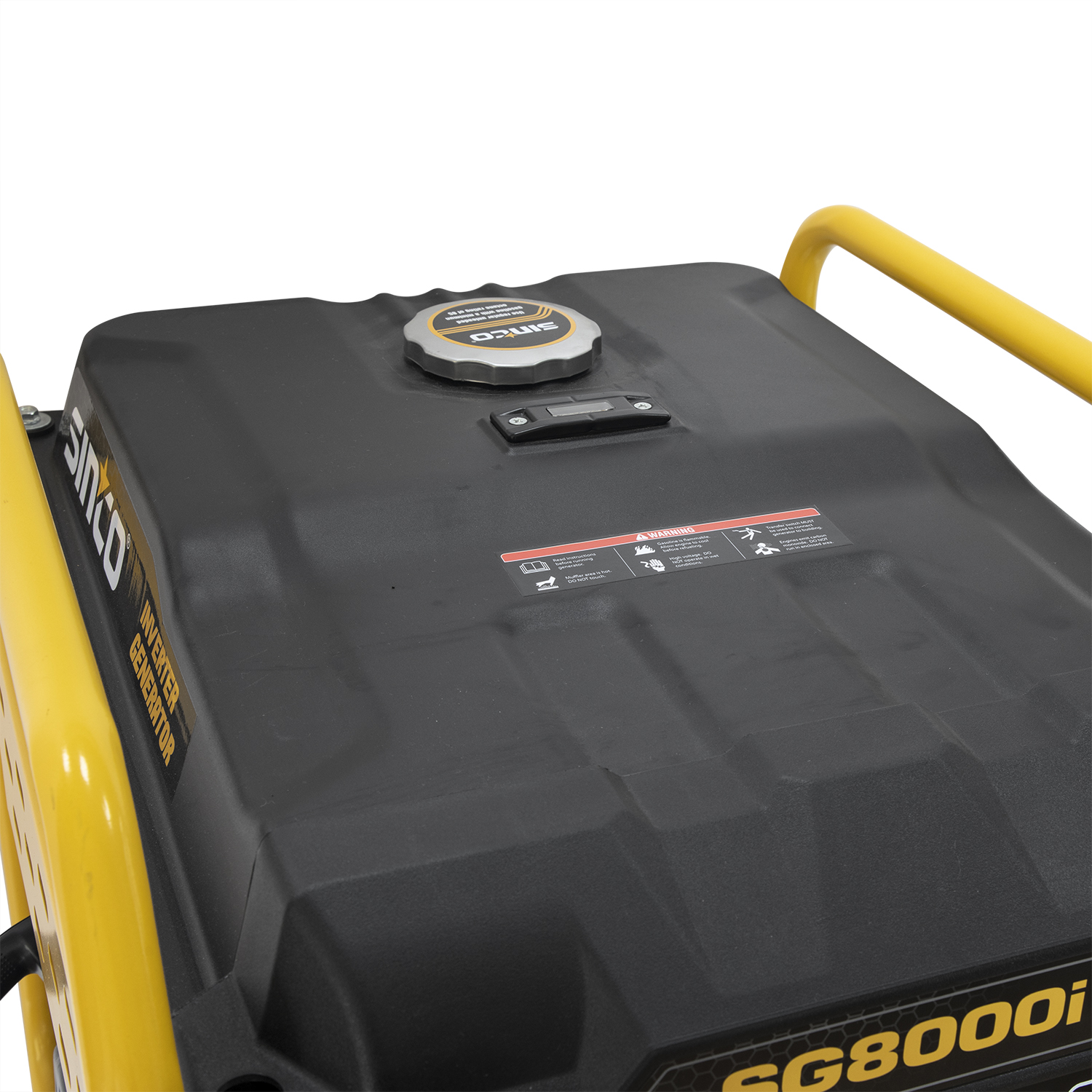

* Big fuel tank ensures long working time

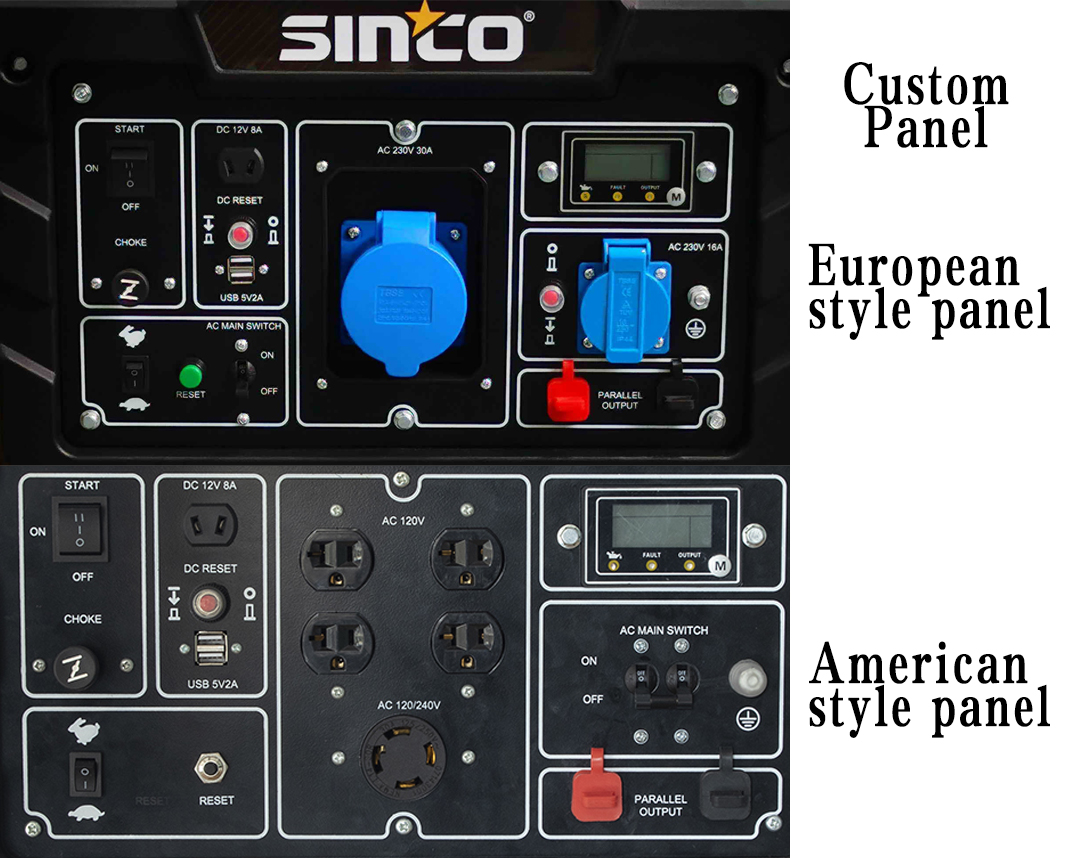

* Digital panel optional

* Customized socket

* Different handles options

* 100% copper wire alternator

Low fuel consumption/ high durability/ low noise

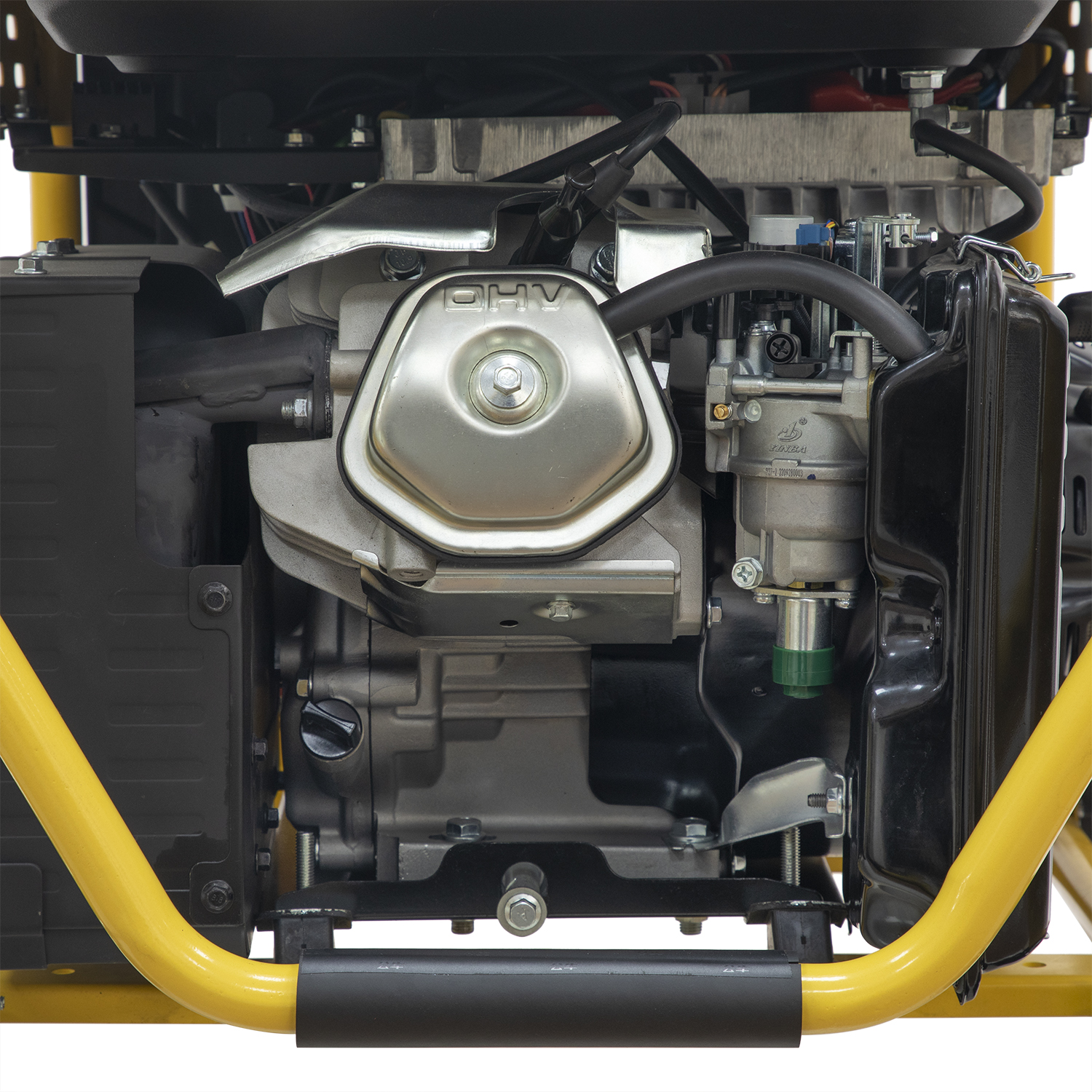

*Strong and powerful gasoline engine with

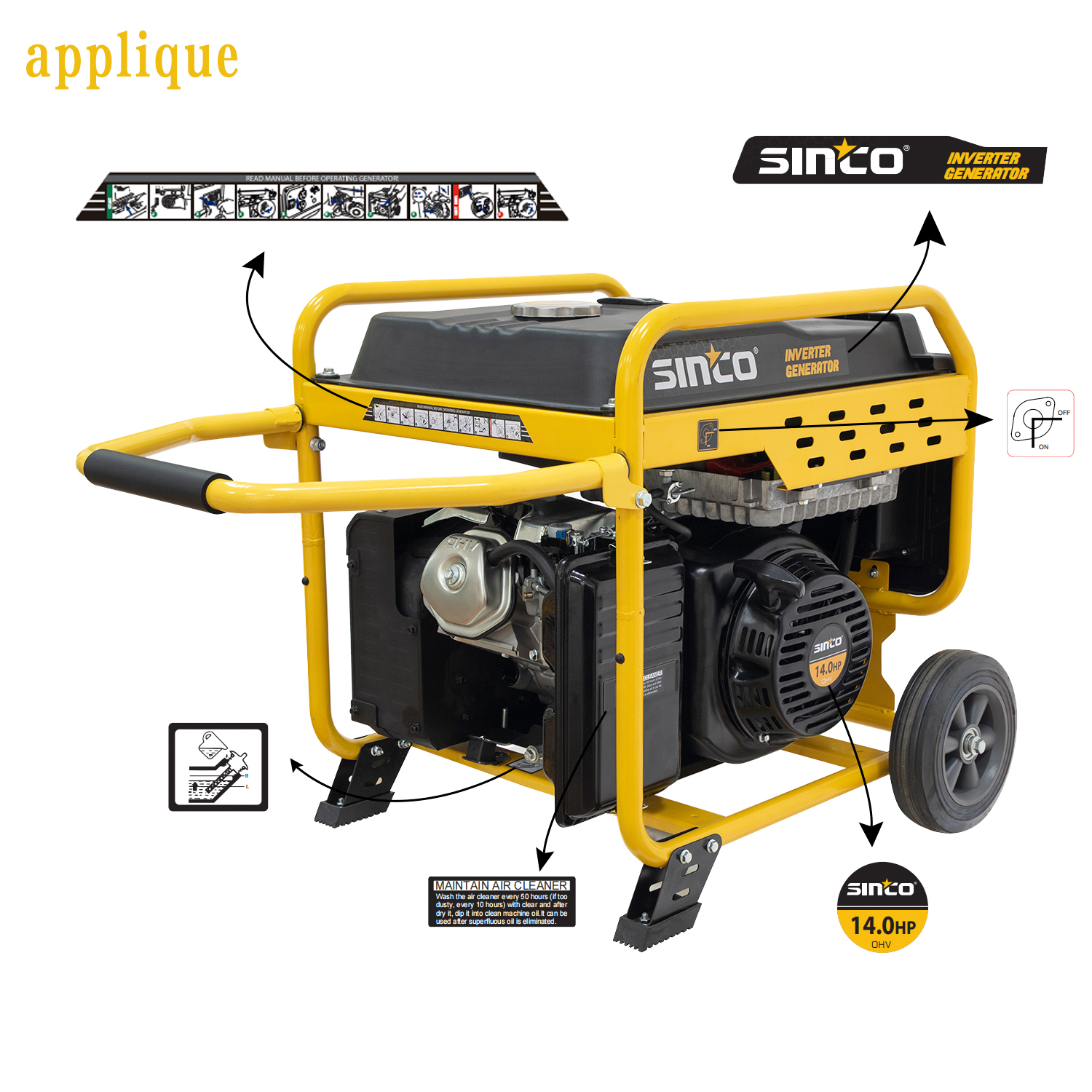

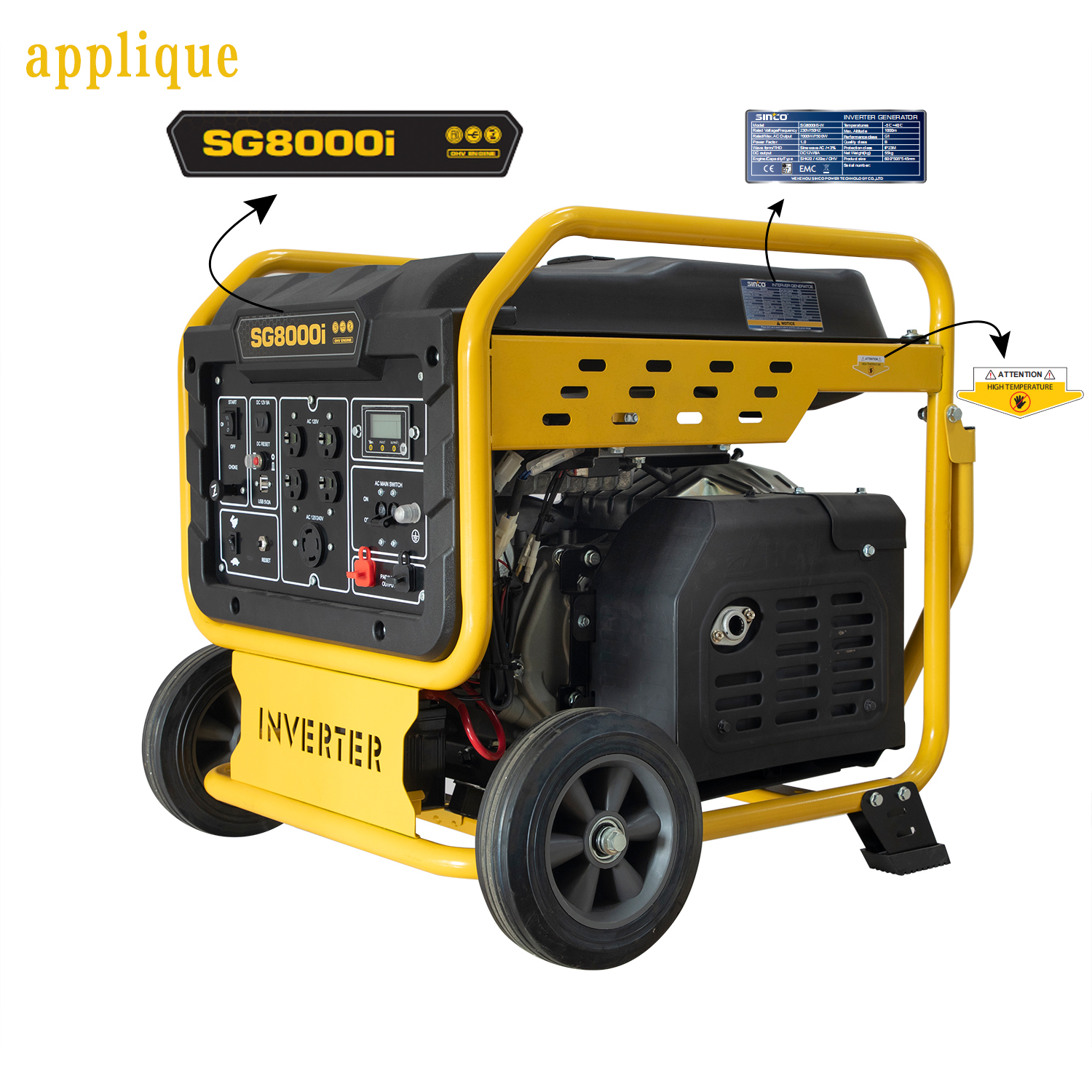

贴花


贴花2

面板

picture (52)

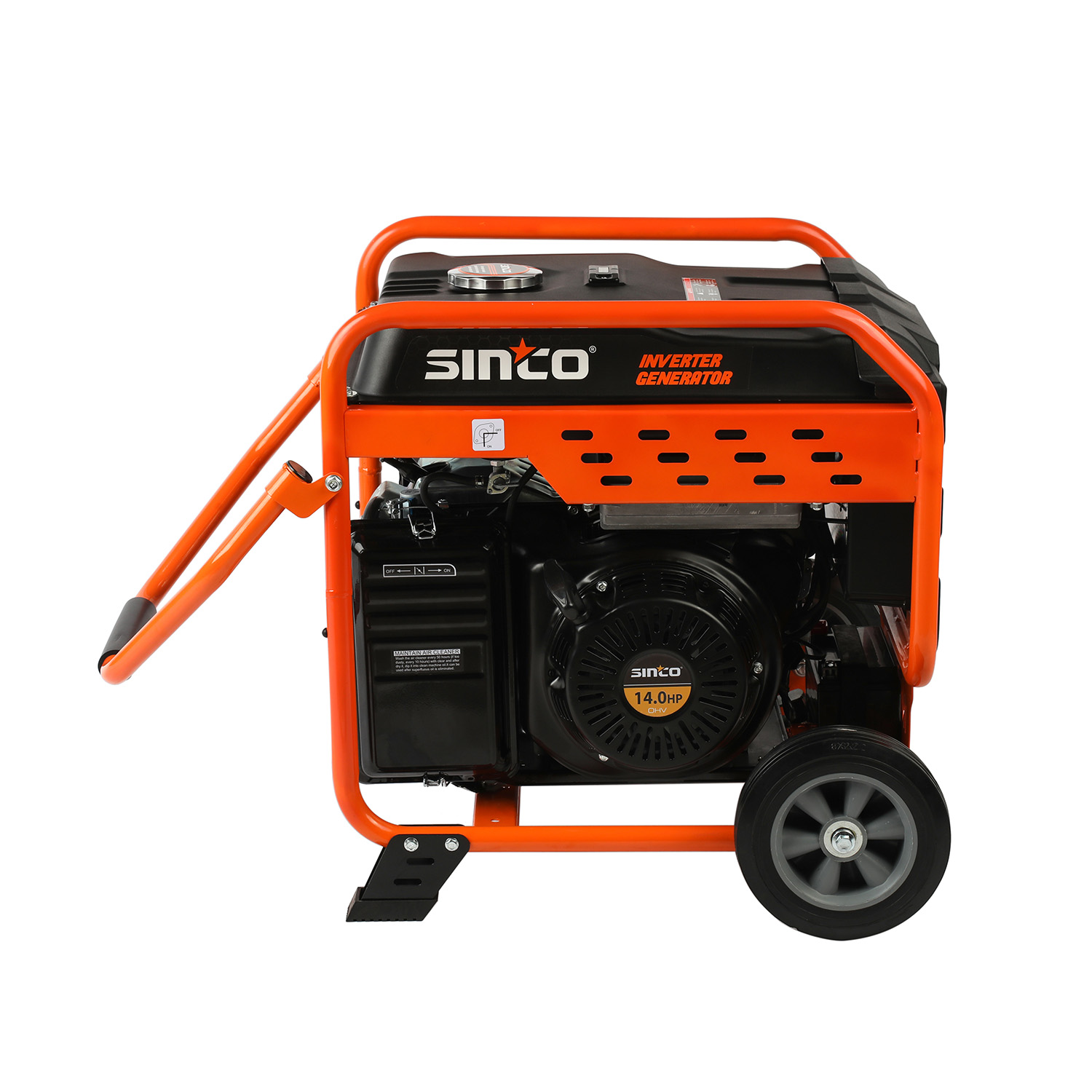

picture (59)
picture (54)




Product Description
We manufacture and test complete power generator sets, ensuring quality, performance and reliability that customers have come to expect. The series of diesel generator can be customized to meet any application requirements.
Feature:
1. The generator set produced by our company is suitable for household, factory, marine, agricultural, mining, hospital, construction and other occasions, and the power of the unit ranges from 650W to 8KW.
2. The generator sets are available for 50Hz or 60Hz frequency, 1500 or 3600 rotation speed, Voltage from 127/220V or 230/400V, AC single phase or AC three single phase.
3. We provide different configuration options such as Closed coupled type(silent box for noise reduction) or Open type, Brushless or Brush. You can choose those additional options by yourself, extra cost may needed.
4. Our generator set has the advantages of high power, low fuel consumption, low noise, and versatility.
5. Equipped with cooling system guarantee long time working and generator set control system.

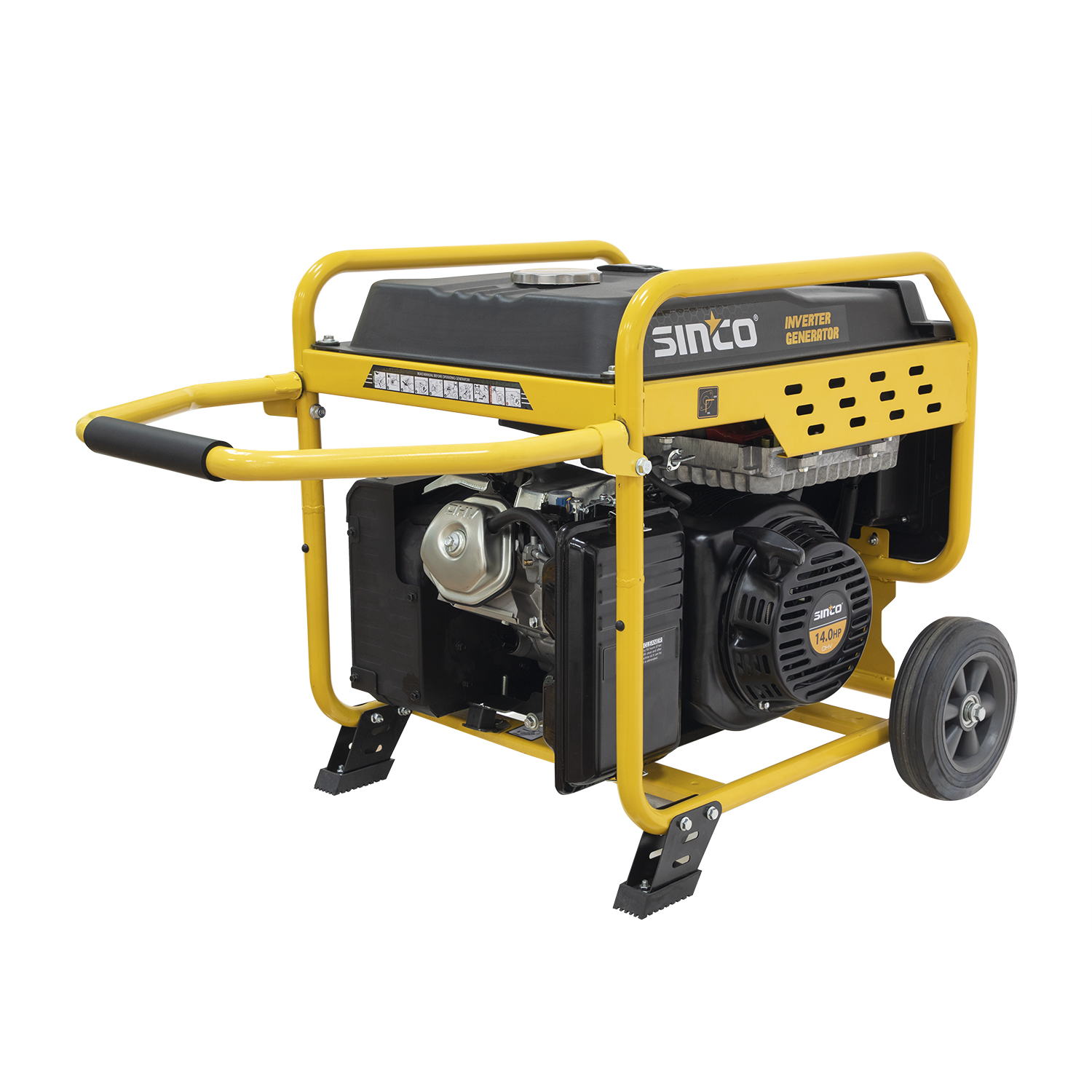

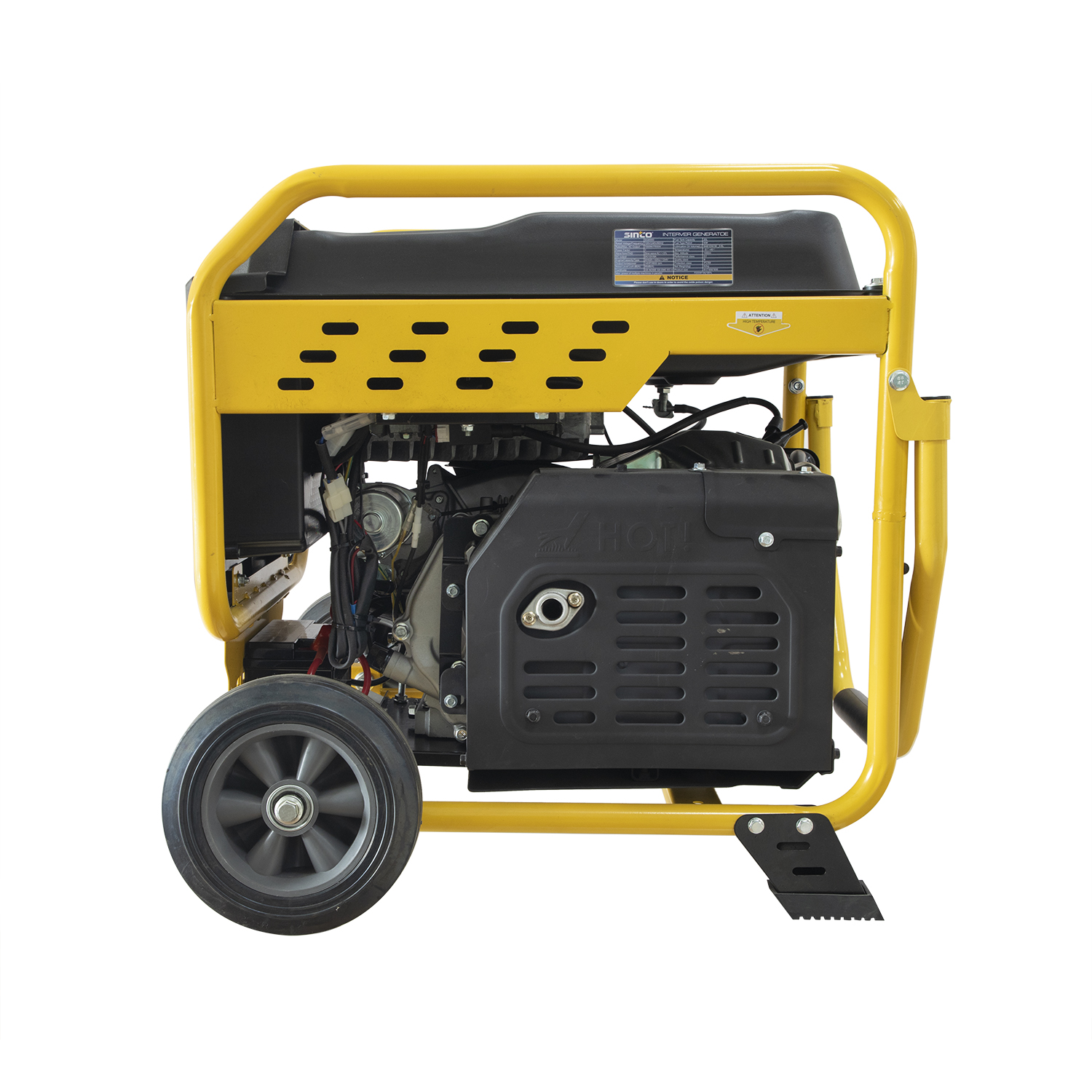

Reference picture
Sinco Brand 8kw Large Capacity Oil Tank Open Inverter Generator with Wheels with EPA/Carb/CE/Noise/GS
Sinco Brand 8kw Large Capacity Oil Tank Open Inverter Generator with Wheels with EPA/Carb/CE/Noise/GS
Sinco Brand 8kw Large Capacity Oil Tank Open Inverter Generator with Wheels with EPA/Carb/CE/Noise/GS
Sinco Brand 8kw Large Capacity Oil Tank Open Inverter Generator with Wheels with EPA/Carb/CE/Noise/GS

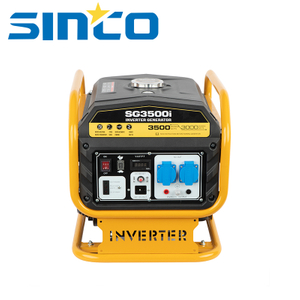

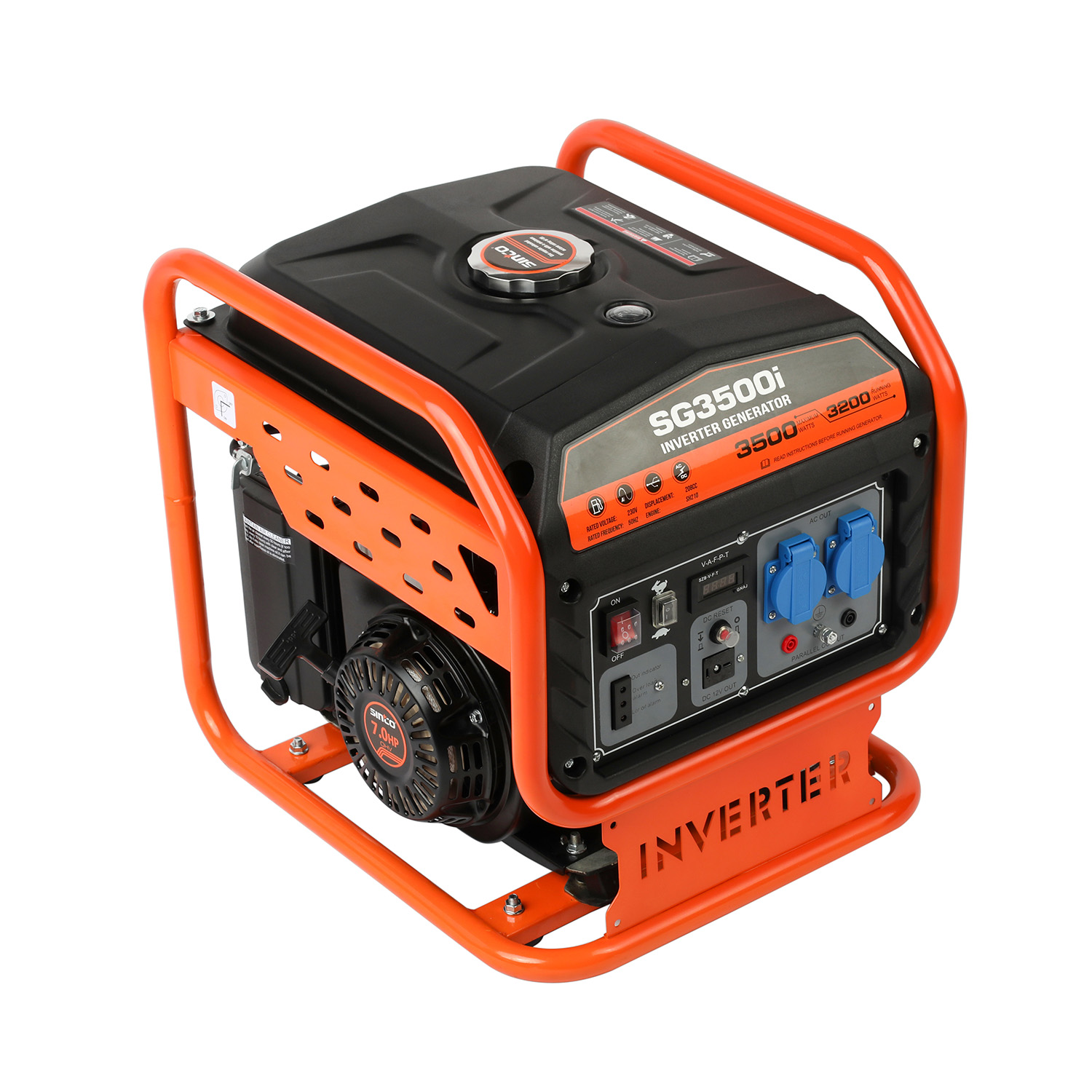

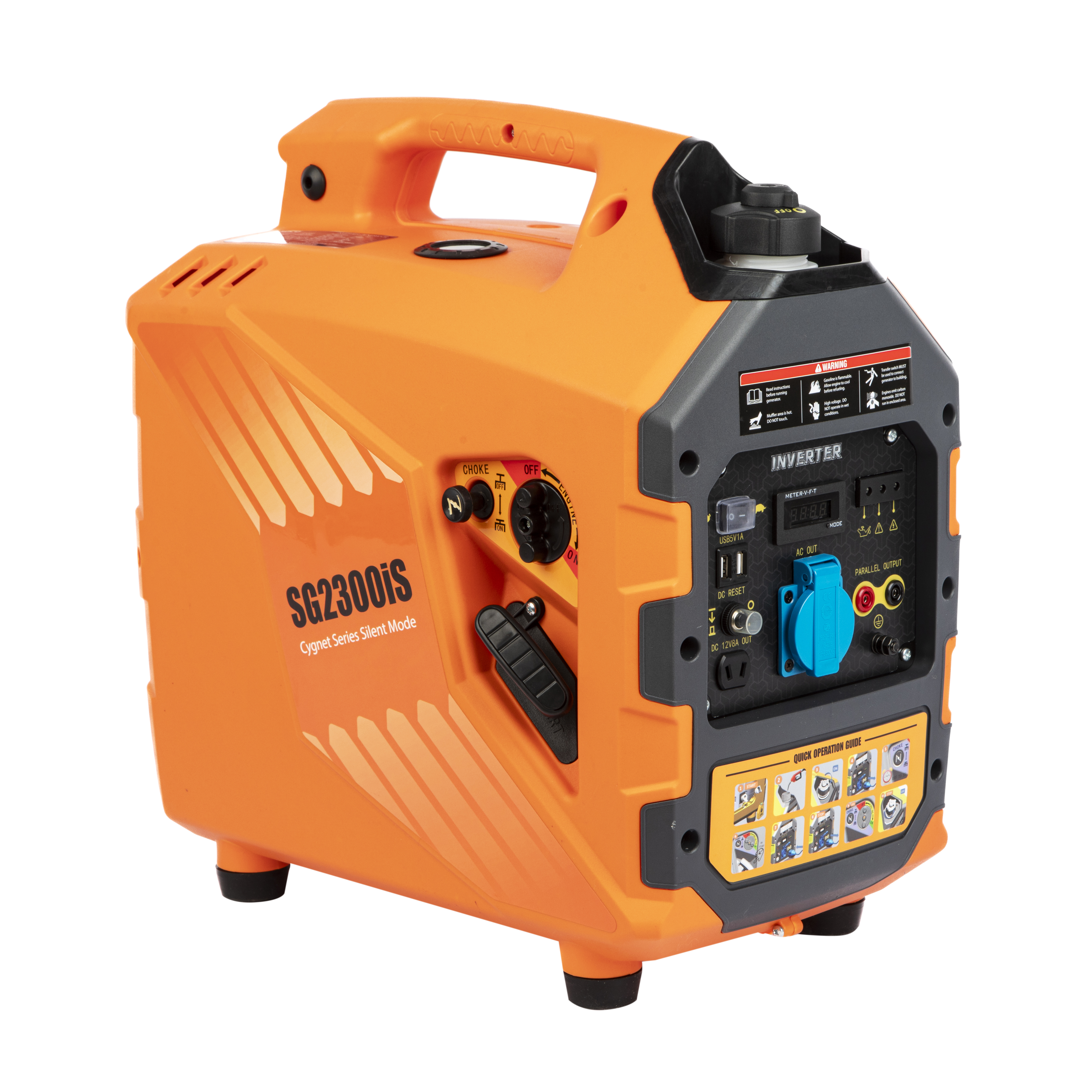

Unit model SG3500i SG8000iWE SG2300iS SG3500iS
Unit name Open inverter generator Open inverter generator Closed mute inverter generator Closed mute inverter generator
Rated power 3.2KW 7.0KW 1.8KW 3.0KW
max power 3.5KW 7.5KW 2.0KW 3.3KW
Voltage frequency 230V/240V/115V/120V/50HZ/60HZ 230V/240V/115V/120V/50HZ/60HZ 230V/240V/115V/120V/50HZ/60HZ 230V/240V/115V/120V/50HZ/60HZ
DC output DC12V8A DC12V8A DC12V8A DC12V8A
USB output no USB5V2A USB5V2A USB5V2A
Waveform
distortion rate
THD<2.5%/Pure sine wave/
Multi machine parallel function
THD<2.5%/Pure sine wave/
Multi machine parallel function
THD<2.5%/Pure sine wave/
Multi machine parallel function
THD<2.5%/Pure sine wave/
Multi machine parallel function
Engine model SH210 / 208CC SH420E / 420CC SH80i / 79.8CC SH164 / 145CC
Start mode Manual start Manual start and electric start Manual start  Manual start
Cylinder bore stroke
compression ratio
φ70mm x 54mm / 8.5:1 φ90mm x 66mm / 8.5:1 φ48.6mm x 43mm / 9.5:1 φ64mm x 45mm / 9.5:1
Output horsepower 7HP/3600 rpm 14HP/3600 rpm 3HP/4800 rpm 5HP/4800 rpm
Engine type Single cylinder, four stroke, forced air cooling, OHV, splash lubrication
Tank volume 10L 20L 5L 5L
dB(A)(7m) 75dB(A) 76dB(A) 61dB(A) 61dB(A)
Intelligent protection Overtemperature protection, overspeed protection, overload protection, undervoltage protection
Product size 495×425×470 617*650*606(with wheels) 480*280*480 480*280*480
Box size 500*440*480 680*530*560 515*325*500 515*325*500
net weight 32KG 62KG 19KG 21KG
Number of cabinets STD40HQ=590pcs STD40HQ=288pcs STD40=672pcs/STD20=312pcs STD40=672pcs/STD20=312pcs


  目录_01目录_02目录_03

目录_05目录_06目录_07


模板07

模板_08
