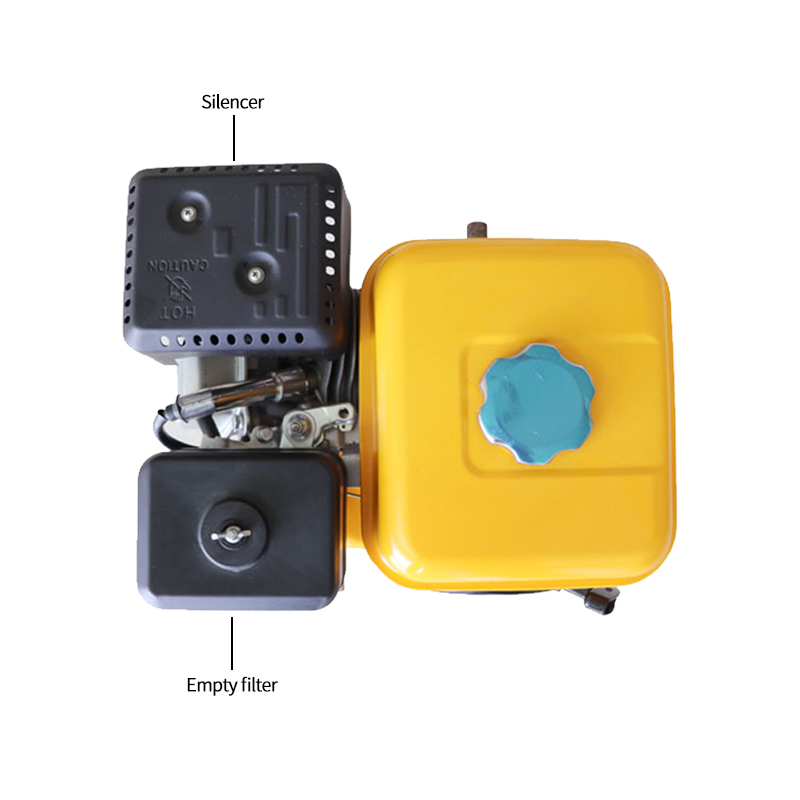

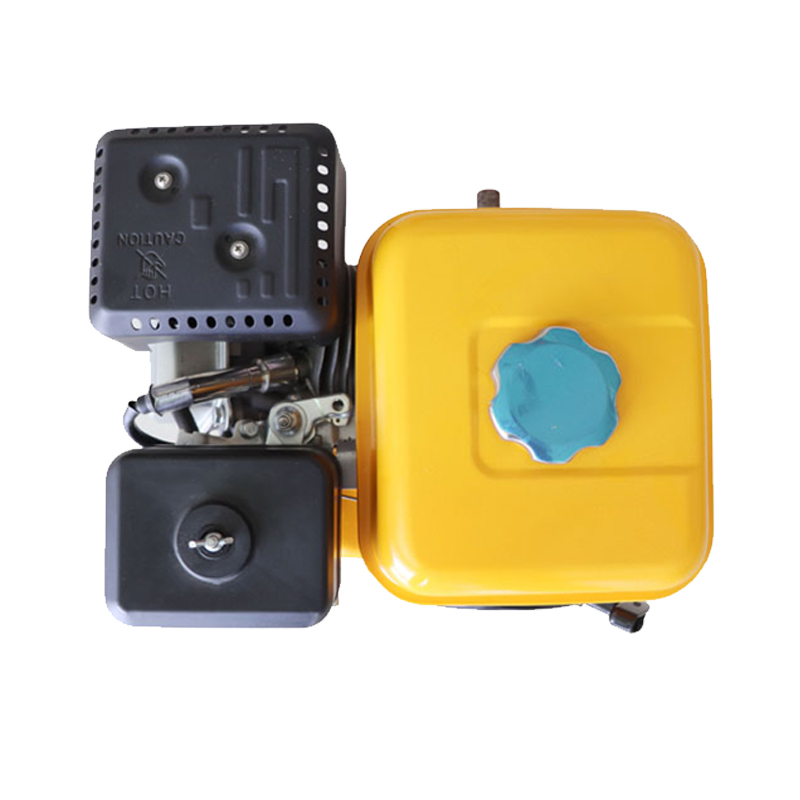

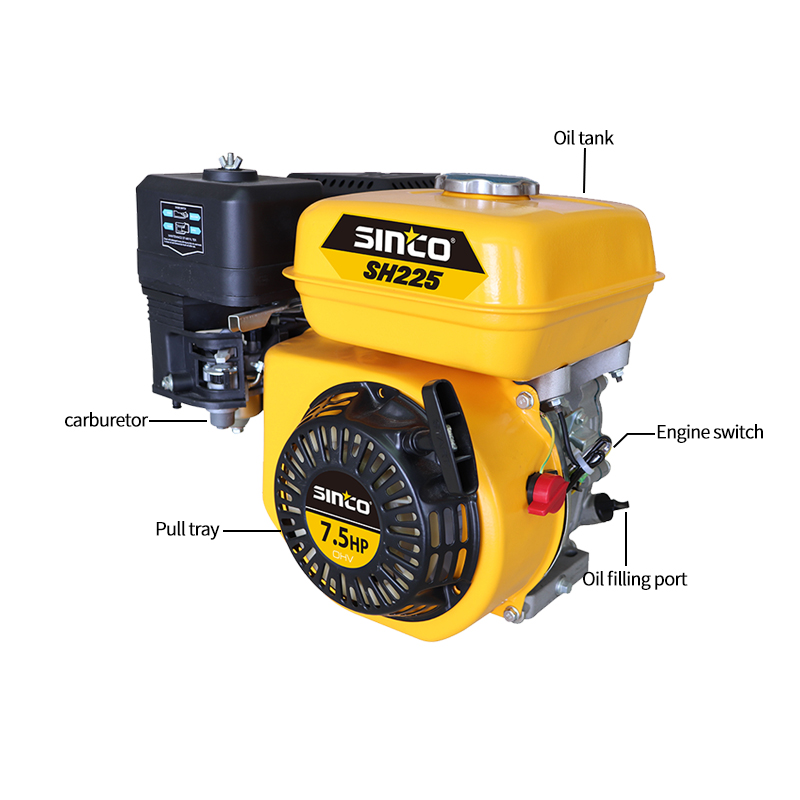

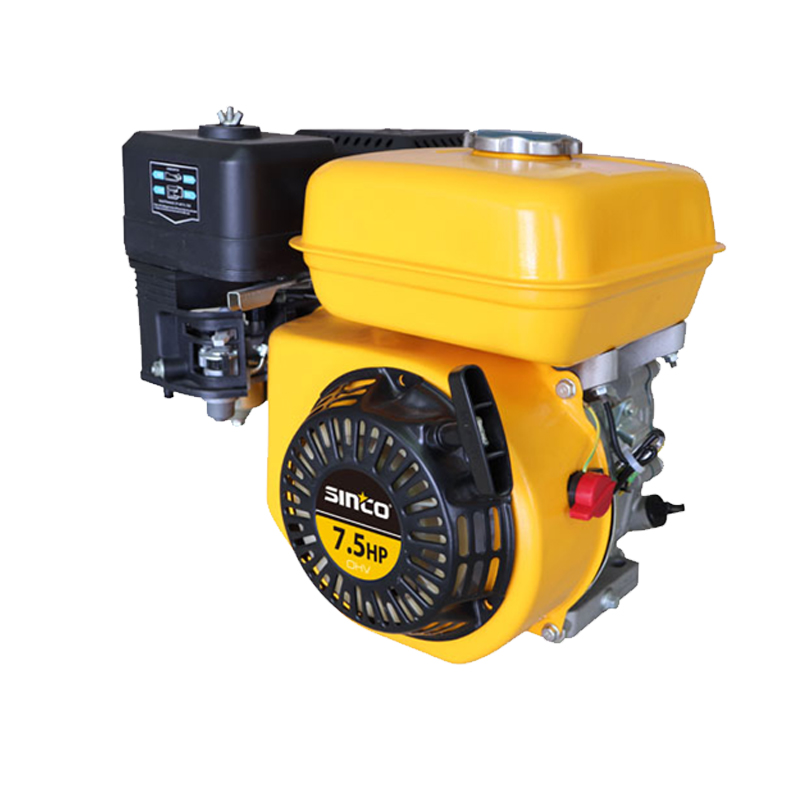

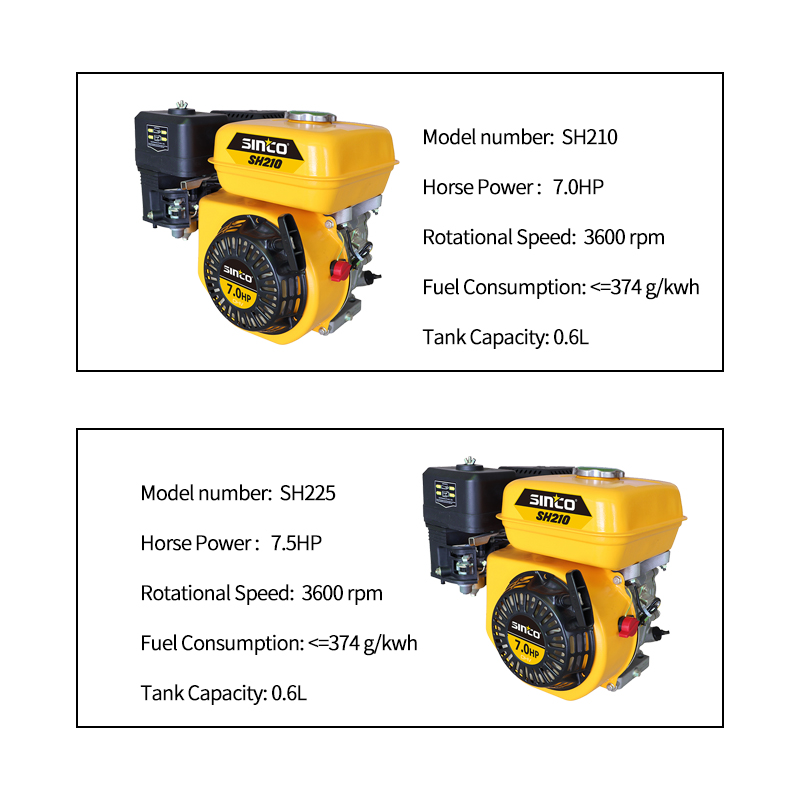

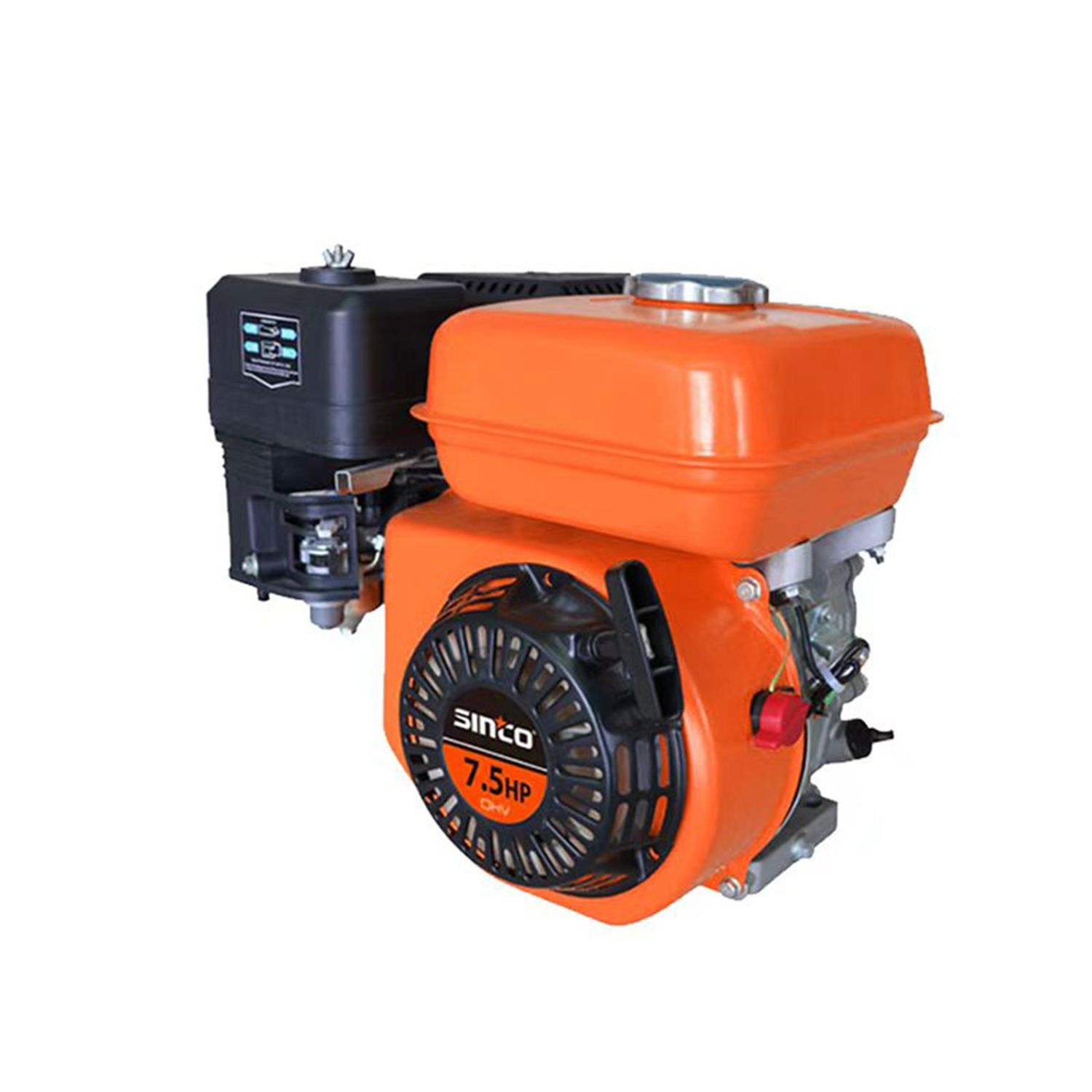

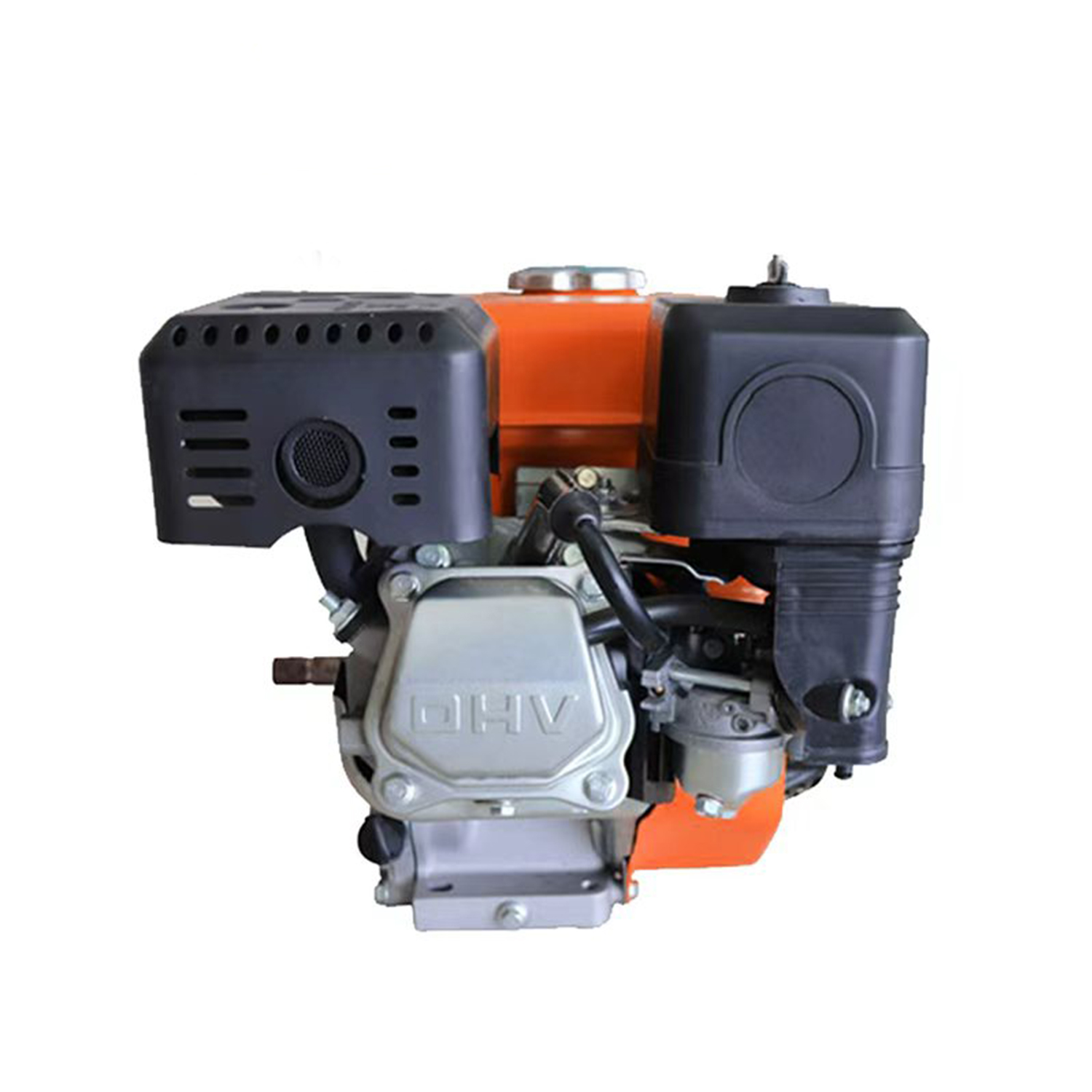

SPECIFICATIONS
SH225
Engine type
Single-cylinder; Four-Stroke, Air-cooled,
OHV Gasoline Engine
Bore X Stroke(mm)
70x58
Displacement Capacity(cc)
223
Max.Output(H P)/rpm
7.5/3600
Fuel Consumption(g/kwh)
≤ 374
Ignition System
Transistorized Magneto Ignition
Spark Plug
F6TC
Fuel Oil Tank Capacity(L)
3.6
Lubrication Oil
SAE 5W/30
Lubrication Oil Volume(L)
0.6
Starting System
Recoil / Electric Starter
Stop System
Ignition Primary Circuit Groun
Noise Level at 7m(dB)
80
Net Weight/Gross Weight(kg)
16/19
Dimension(mm)
376x312x335
20ft Container QTY
512
40ft Container QTY
1056
Certificate
EC-V/EPA/CARB/EMC
